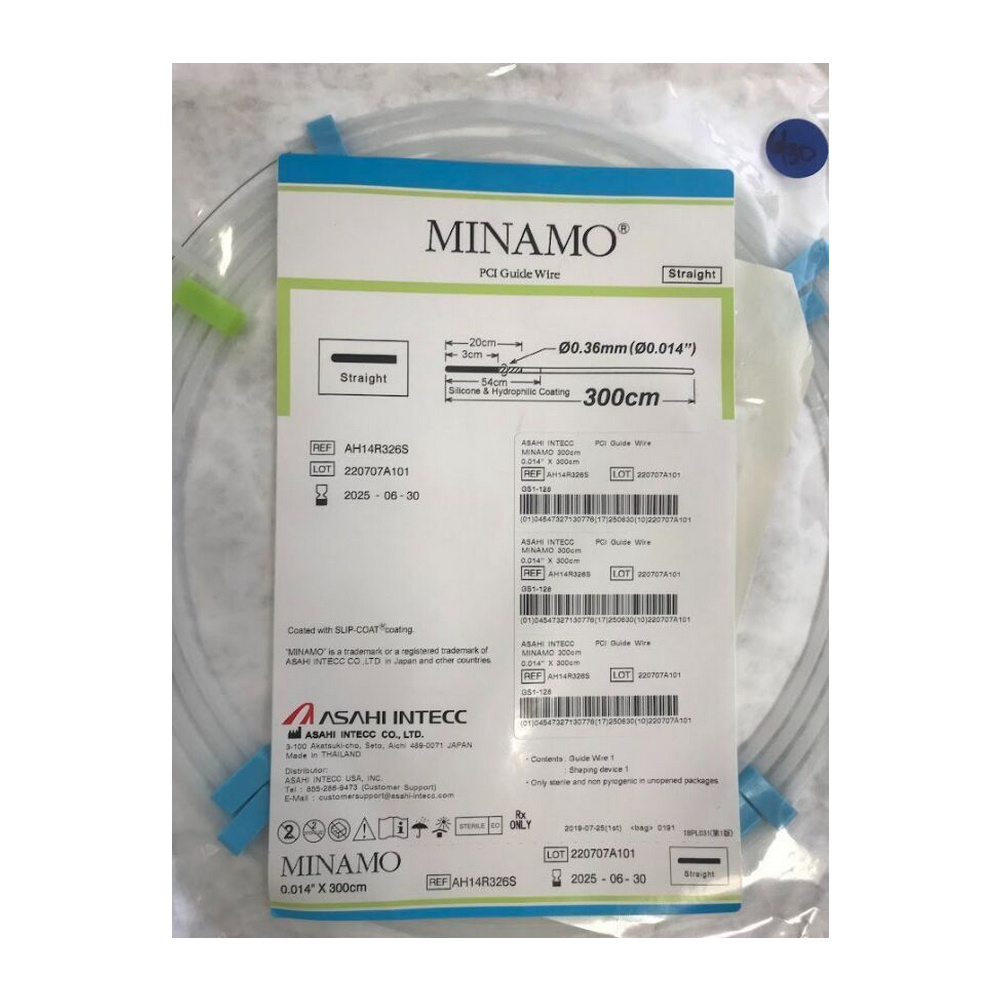

Minamo Guide Wire Straight Tip 300cm AH14R326S

MINAMO Guide Wire Straight Tip AH14R326S is a single-use hybrid-coated coronary guide wire designed for navigating complex coronary anatomy during percutaneous coronary intervention (PCI). It features a straight 0.014″ tip with excellent torque response, flexibility, and shape retention for reliable lesion crossing. The 300 cm working length is ideal for guide catheter exchange and complex coronary interventional procedures.

BUY NOW

SKU AH14R326S Category

The MINAMO Guide Wire Straight Tip AH14R326S is engineered with proprietary ACT ONE technology and a three-piece coaxial core incorporating a nitinol distal core to provide exceptional torque transmission, durability, and vessel navigation during routine and complex PCI procedures. Its hybrid coating combines a hydrophilic shaft with a silicone-coated distal segment, ensuring smooth advancement while maintaining precise guide wire control through tortuous coronary vessels. The soft 0.5 gf straight tip, 20 cm spring coil, and 3 cm radiopaque segment provide atraumatic vessel access, excellent fluoroscopic visibility, and dependable support for balloon and stent delivery. Supplied sterile for single-use applications, the guide wire delivers dependable clinical performance while eliminating the need for reprocessing.

Technical Specification

Specification Details
Model Number AH14R326S
Working Length 300 cm
Guide Wire Diameter 0.014″ (0.36 mm)
Tip Shape Straight
Tip Load 0.5 gf
Coating Silicone + Hydrophilic Hybrid Coating

Product Also Known As

MINAMO Guide Wire, AH14R326S Guide Wire, MINAMO Straight Tip Guide Wire, 0.014 Inch Coronary Guide Wire, Hybrid Coated PCI Guide Wire, Coronary Intervention Guide Wire, PTCA Guide Wire
