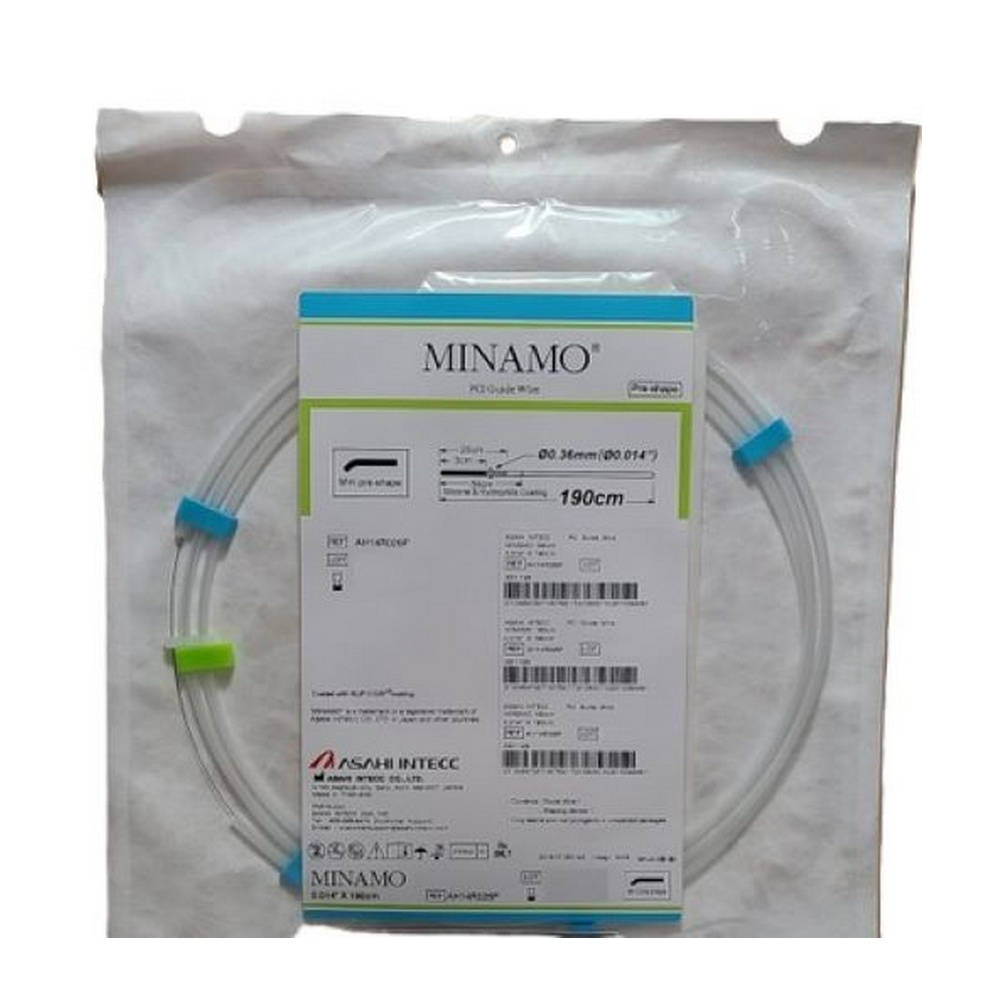

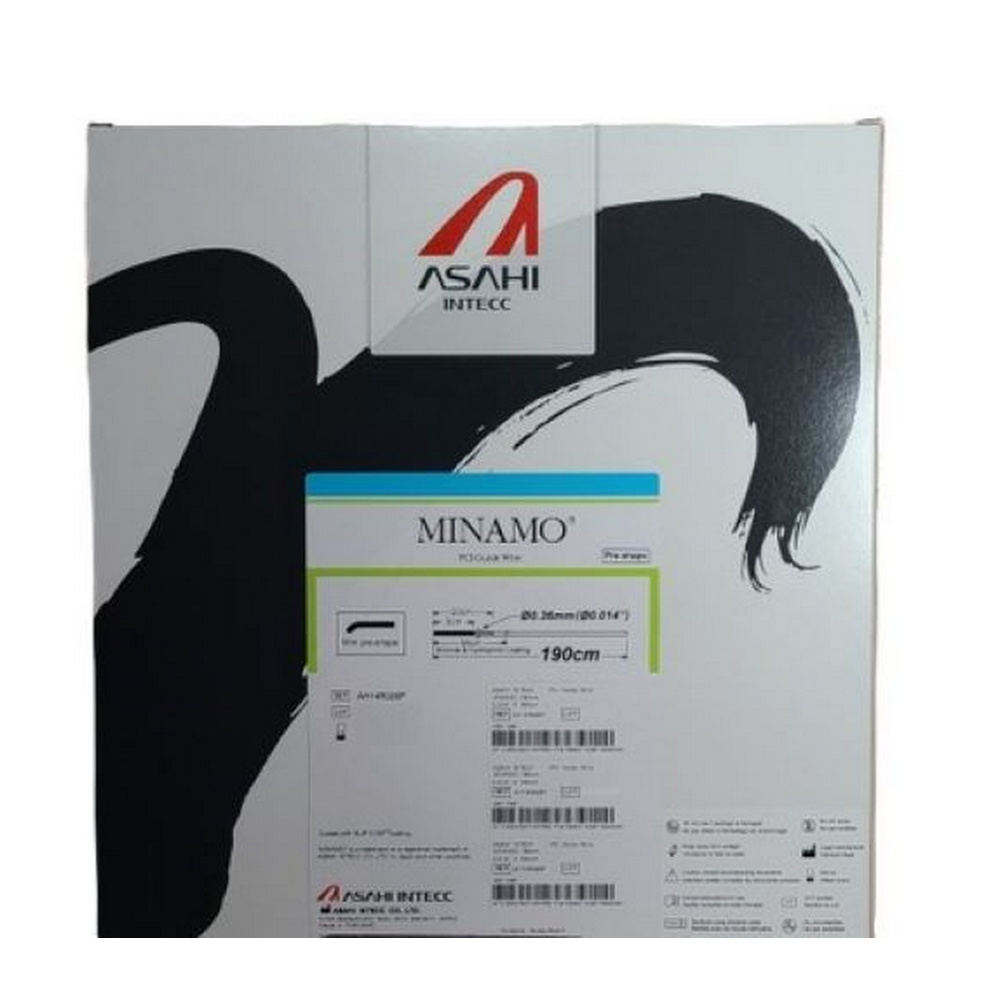

Minamo Guide Wire Pre-Shape Tip 190cm AH14R026P

MINAMO Guide Wire Pre-Shape Tip AH14R026P is a single-use hybrid-coated coronary guide wire designed for navigating complex coronary anatomy during percutaneous coronary intervention (PCI). It features a pre-shaped 0.014″ tip with excellent torque response, flexibility, and shape retention for reliable lesion crossing. The 190 cm working length is ideal for routine coronary interventional procedures.

BUY NOW

SKU AH14R026P Category

The MINAMO Guide Wire Pre-Shape Tip AH14R026P is engineered with proprietary ACT ONE technology and a three-piece coaxial core incorporating a nitinol distal core to provide exceptional torque transmission, durability, and vessel navigation during routine and complex PCI procedures. Its hybrid coating combines a hydrophilic shaft with a silicone-coated distal segment, ensuring smooth advancement while maintaining precise guide wire control through tortuous coronary vessels. The soft 0.5 gf pre-shaped tip, 20 cm spring coil, 3 cm radiopaque segment, and 0.014″ outer diameter provide atraumatic vessel access, excellent fluoroscopic visibility, and dependable support for balloon and stent delivery. Supplied sterile for single-use applications, the guide wire delivers dependable clinical performance while eliminating the need for reprocessing.

Technical Specification

Specification Details
Model Number AH14R026P
Working Length 190 cm
Guide Wire Diameter 0.014″ (0.36 mm)
Tip Shape Pre-Shape
Tip Load 0.5 gf
Coating Silicone + Hydrophilic Hybrid Coating

Product Also Known As

MINAMO Guide Wire, AH14R026P Guide Wire, MINAMO Pre-Shape Guide Wire, 0.014 Inch Coronary Guide Wire, Hybrid Coated PCI Guide Wire, Coronary Intervention Guide Wire, PTCA Guide Wire
