Asahi Tornus Microcatheter 135cm AT24135

Asahi Tornus Microcatheter 135cm AT24135 is a support microcatheter designed to assist guide wire crossing of highly stenosed coronary lesions. Its stainless steel coil shaft provides support, pushability, and torque performance during advancement. The 135 cm catheter has a 1.8 Fr tip and is designed for use with a 0.014-inch guide wire.

BUY NOW

SKU AT24135 Category

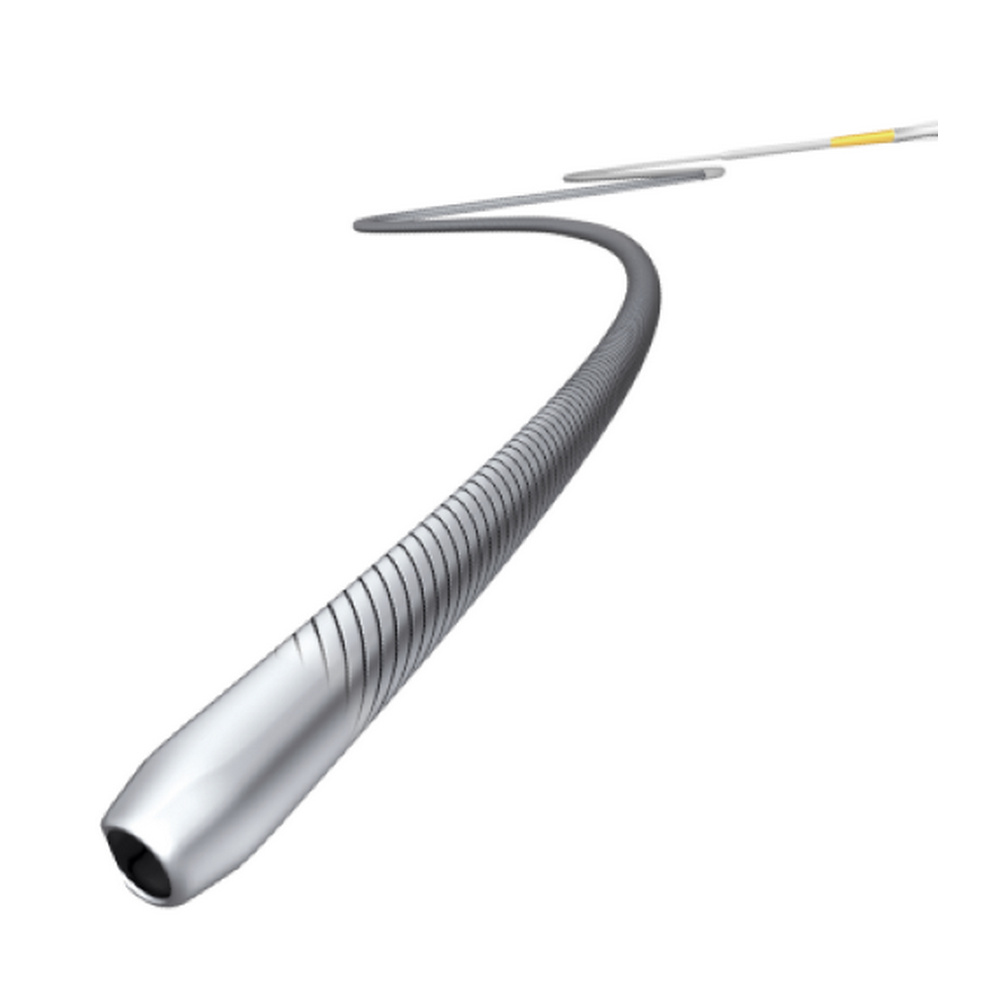

The Tornus is designed to follow a guide wire across highly stenosed lesions and can also support guide wire exchange. Its coil shaft structure allows controlled rotation of the catheter to improve crossability in difficult lesions. A distal radiopaque marker helps provide clear visualization of the catheter tip under fluoroscopy. The catheter has a 0.61 mm tip outer diameter, 0.41 mm tip inner diameter, and 0.46 mm shaft inner diameter for compatible device and guide wire passage.

Technical Specification

Specification Details
Product Name ASAHI Tornus 2.1Fr
Catalog Number AT24135
Usable Length 135 cm
Tip Outer Diameter 0.61 mm (1.8 Fr)
Distal Shaft Outer Diameter 0.71 mm (2.1 Fr)
Tip Inner Diameter 0.41 mm (0.016″)
Shaft Inner Diameter 0.46 mm (0.018″)
Recommended Guide Wire 0.36 mm (0.014″)

Product Also Known As

Asahi Tornus Microcatheter, Asahi Tornus 2.1Fr Microcatheter, Tornus 135cm Microcatheter, AT24135 Microcatheter, Asahi Tornus Support Catheter, Tornus Lesion Crossing Catheter
