Asahi Treasure 12 0.018 Inch Guide Wire Straight Tip 180cm PAGH18M070

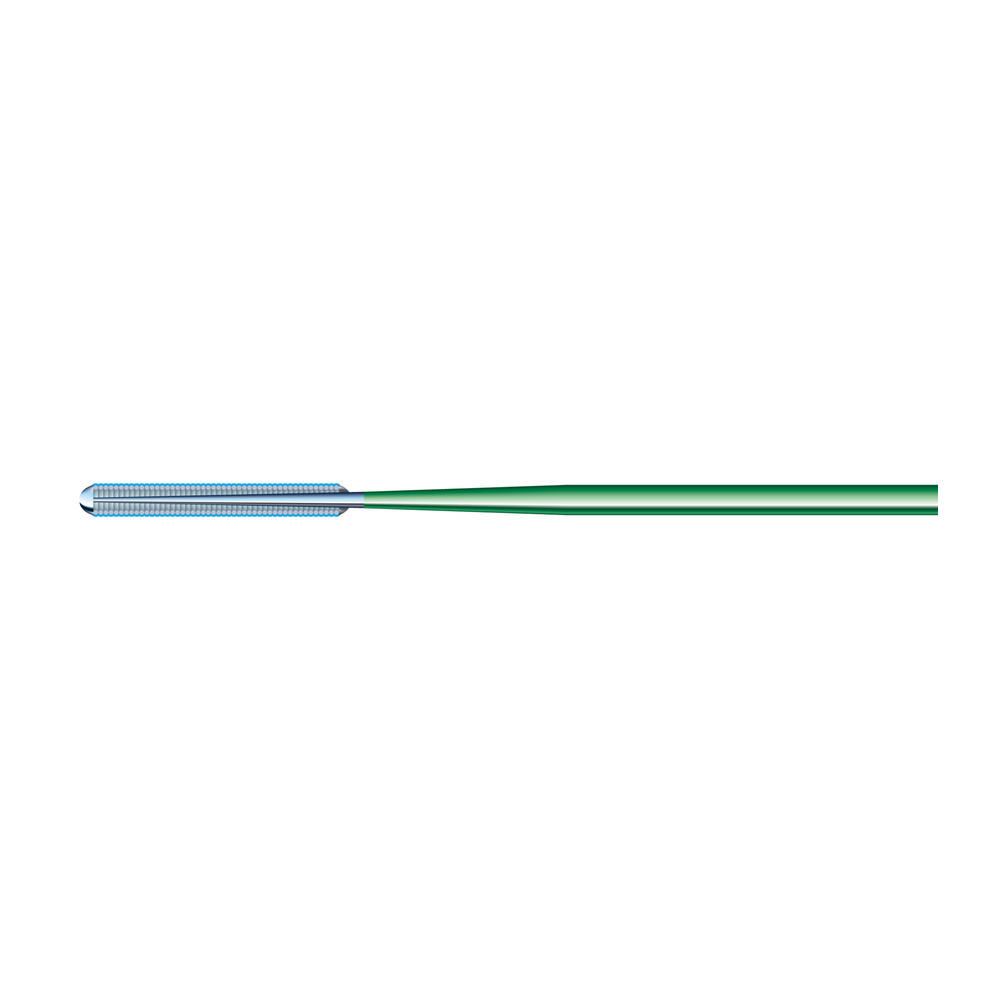

Asahi Treasure 12 0.018 Inch Guide Wire Straight Tip 180cm PAGH18M070 is a peripheral guide wire designed for navigation through complex vascular lesions. It features a straight tip with a 12 gf tip load to provide controlled support during lesion crossing. The 180 cm length and 0.018-inch diameter provide suitable reach for peripheral vascular procedures.

BUY NOW

SKU PAGH18M070 Category

Treasure 12 is designed to provide consistent response and tactile feedback during navigation of complex peripheral lesions. Its 12 gf tip load provides support for controlled advancement through challenging or resistant lesions. The hydrophilic coating helps improve lubricity, while the uncoated ball tip supports controlled interaction with the lesion. The 15 cm coil and 15 cm radiopaque segment support distal flexibility and fluoroscopic visibility during intervention.

Technical Specification

Specification Details
Product Name Treasure 12
Catalog Number PAGH18M070
Tip Shape Straight
Usable Length 180 cm
Outer Diameter 0.45 mm (0.018″)
Tip Load 12 gf
Coating Hydrophilic with Uncoated Ball Tip

Product Also Known As

Asahi Treasure 12 Guide Wire, Treasure 12 0.018 Inch Guide Wire, Treasure 12 180cm Guide Wire, PAGH18M070 Guide Wire, Asahi Treasure 12 Straight Tip Guide Wire, Treasure 12 Peripheral Guide Wire
