Asahi SUOH 03 Guide Wire Straight Tip 190cm AHW14R013S

Asahi SUOH 03 Guide Wire Straight Tip 190cm AHW14R013S is a flexible coronary guide wire designed for complex and challenging coronary interventions. It features a straight tip with a very low 0.3 gf tip load for delicate navigation through difficult anatomy. The 190 cm guide wire has a 0.014-inch diameter and hydrophilic coating to support smooth tracking.

BUY NOW

SKU AHW14R013S Category

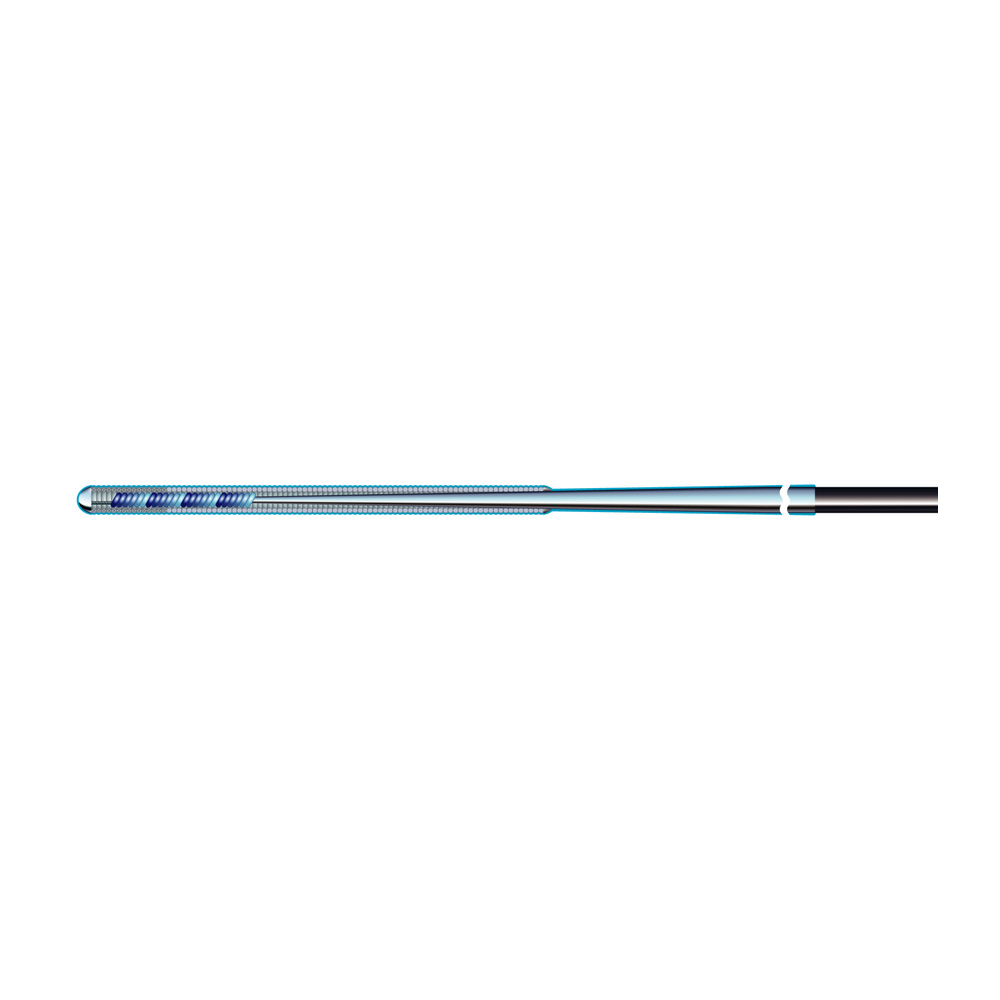

The SUOH 03 is designed for complex coronary procedures where high flexibility and precise distal navigation are required. Its ACT ONE technology provides torque response while the flexible distal construction helps the wire navigate tortuous pathways. The 52 cm hydrophilic coating provides high lubricity to facilitate advancement through vessels and compatible devices. A 19 cm coil length and 3 cm radiopaque segment provide flexible tip performance and fluoroscopic visibility during intervention.

Technical Specification

Specification Details
Product Name ASAHI SUOH 03
Catalog Number AHW14R013S
Tip Shape Straight
Usable Length 190 cm
Outer Diameter 0.36 mm (0.014″)
Tip Load 0.3 gf
Coating Hydrophilic, 52 cm

Product Also Known As

Asahi SUOH 03 Guide Wire, ASAHI SUOH 03 Coronary Guide Wire, SUOH 03 190cm Guide Wire, AHW14R013S Guide Wire, Asahi SUOH 03 Straight Tip Guide Wire, SUOH 03 PCI Guide Wire
