Asahi Gaia PV 0.018 Inch Guide Wire Pre-Shape Tip 200cm PHW18R102P

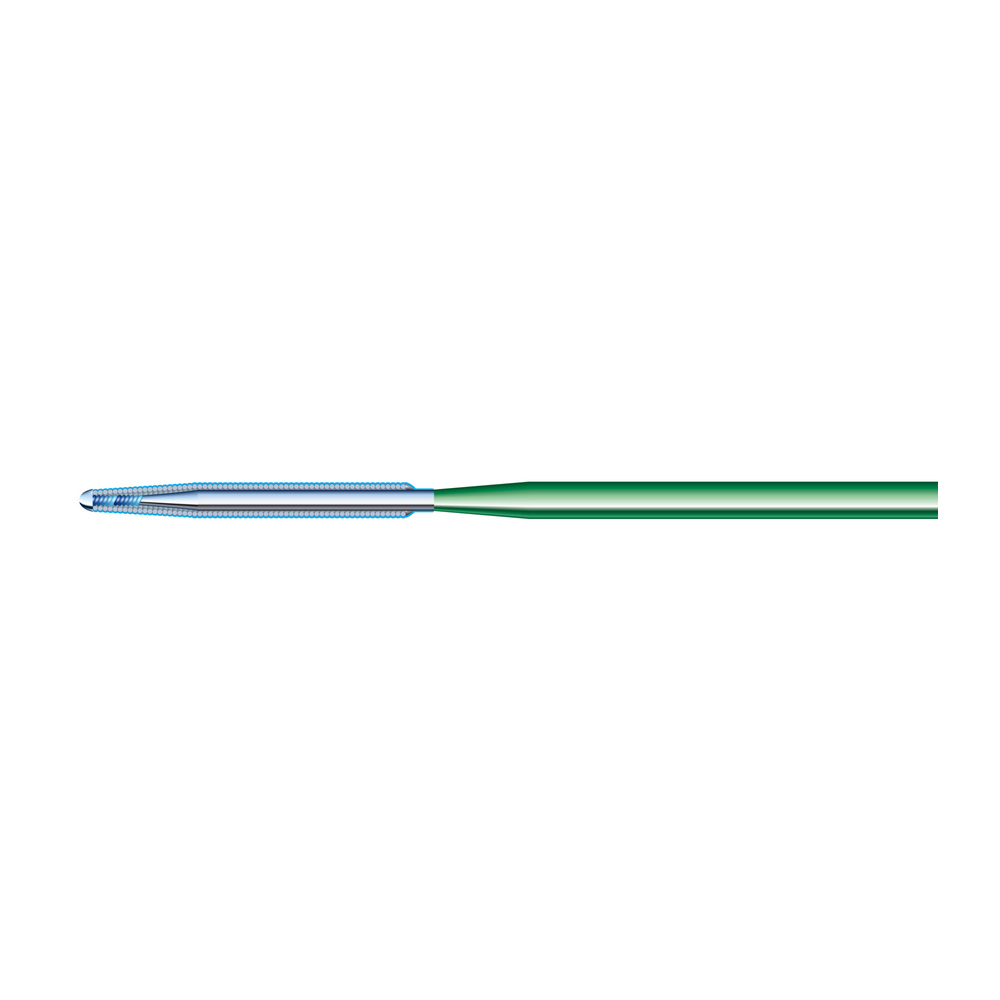

Asahi Gaia PV 0.018 Inch Guide Wire Pre-Shape Tip 200cm PHW18R102P is a peripheral guide wire designed for navigation through challenging vascular lesions. It features a 1 mm pre-shaped tip and a 7.5 gf tip load to support controlled directional navigation and lesion crossing. The 200 cm guide wire has a 0.018-inch diameter and hydrophilic coating with an uncoated ball tip for smooth tracking.

BUY NOW

SKU PHW18R102P Category

The ASAHI Gaia PV is designed to provide a balance of penetration force, deflection control, and torque response during complex peripheral procedures. Its micro-cone tip is designed to improve penetration efficiency when creating an entry route through hard tissue and fibrous lesions. The pre-shaped tip is incorporated during manufacturing to improve shape retention and support directional control during advancement. The hydrophilic coating, 15 cm coil length, and 15 cm radiopaque segment support smooth movement, distal flexibility, and fluoroscopic visibility.

Technical Specification

Specification Details
Product Name ASAHI Gaia PV
Catalog Number PHW18R102P
Tip Shape Pre-shape
Usable Length 200 cm
Outer Diameter 0.45 mm (0.018″)
Tip Load 7.5 gf
Coating Hydrophilic with Uncoated Ball Tip
