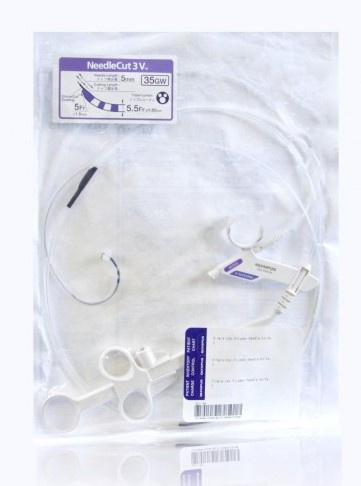

NeedleCut3V V-System triple-lumen needle knives 170cm KD-V441M

NeedleCut3V V-System Triple-Lumen Needle Knife is a single-use device designed for ERCP procedures. It is used to perform controlled precut papillotomy when standard biliary cannulation is difficult. The triple-lumen design allows guidewire access and contrast injection without exchanging the device.

BUY NOW

SKU KD-V441M Category

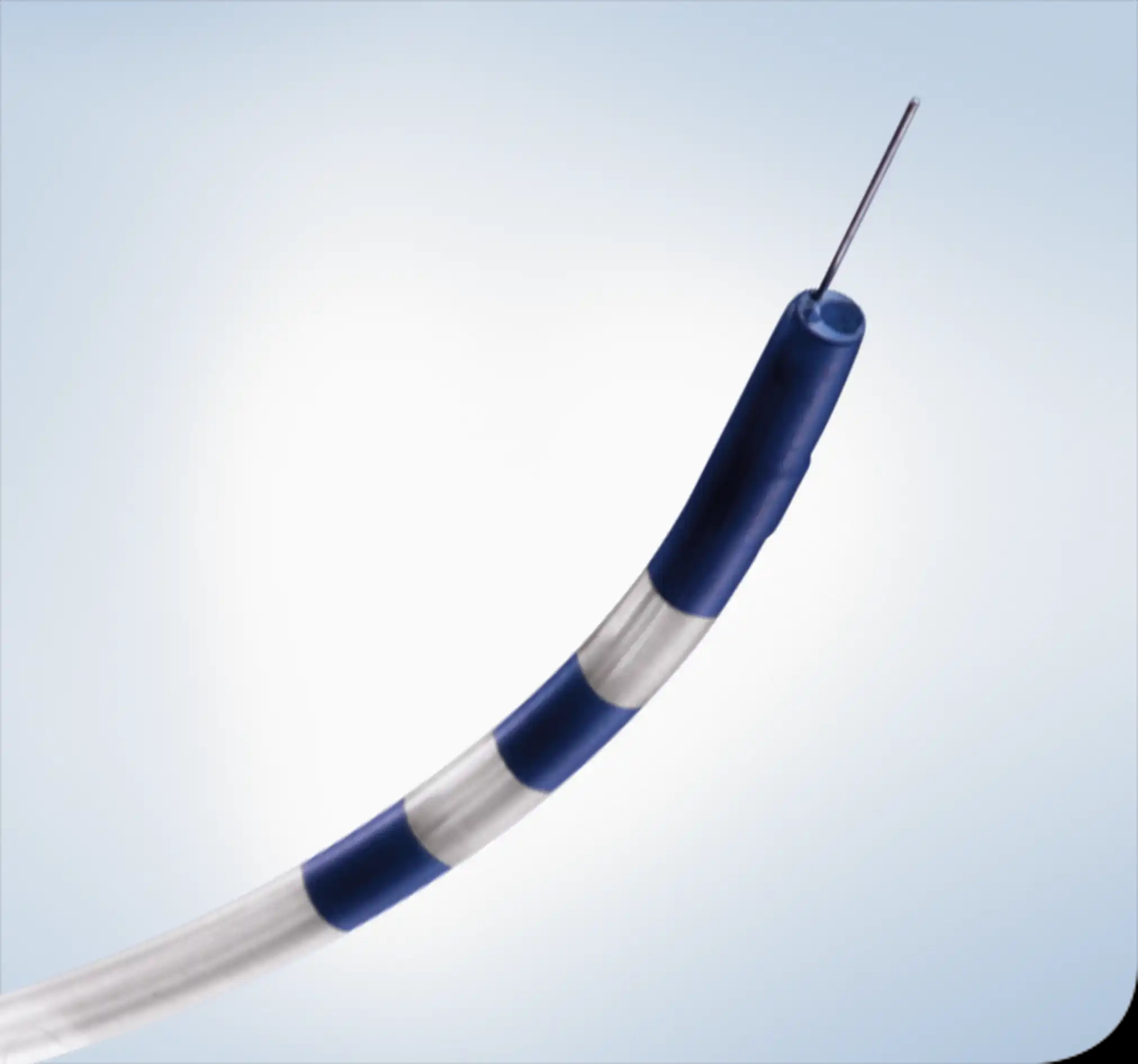

The device features separate lumens for the cutting wire, guidewire, and contrast injection, improving procedural efficiency during therapeutic ERCP. Its pre-curved, tapered tip supports stable positioning at the papilla, while the radiopaque distal marker enhances fluoroscopic visibility during endoscopic procedures. The KD-V441M model includes a 5 mm needle without an insulated safety coating, providing full cutting length for effective precut papillotomy. Compatible with 0.035-inch guidewires, the device delivers reliable performance for biliary and pancreatic access interventions.

Technical Specification

Specification Details
Model Number KD-V441M
Working Length 170 cm
Minimum Channel Size 2.8 mm
Compatible Guidewire 0.035 in
Distal Tip Diameter 5 Fr
Needle Length 5 mm

Product Also Known As

NeedleCut3V Triple-Lumen Needle Knife, V-System Needle Knife, ERCP Needle Knife, Triple-Lumen Precut Knife, Papillotomy Needle Knife, Endoscopic Needle Knife, Biliary Needle Knife
