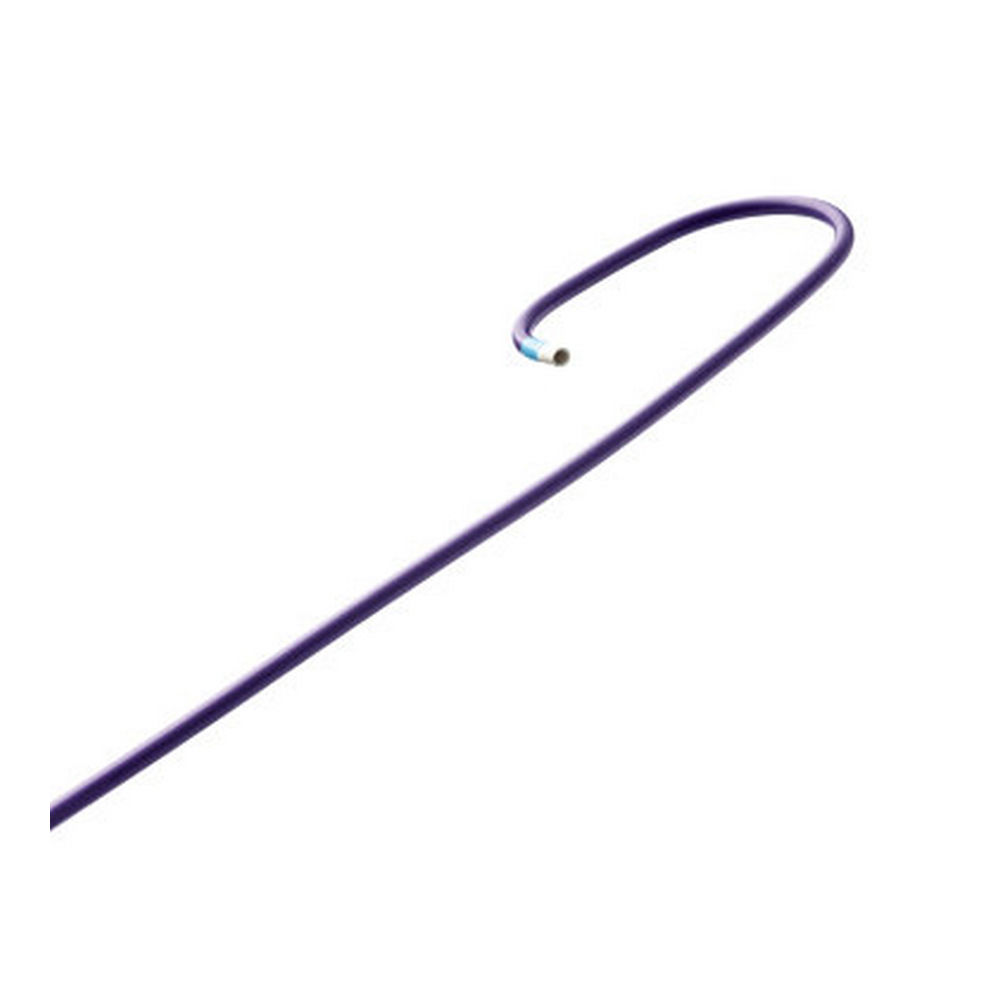

Medtronic Laucher Guiding catheter 6 Fr – 100 cm Judkins Right JR 5.0 LA6JR50
The Medtronic Launcher Guiding Catheter is a sterile, single-use coronary guide catheter. It facilitates the delivery of guidewires, balloons, and stents into the right coronary artery. The device offers balanced flexibility, strong backup support, and high radiopacity for reliable clinical performance.
With its JR 5.0 curve, this catheter is specifically designed to engage the right coronary ostium with enhanced backup and stability, especially in challenging anatomies. Its Full‑Wall shaft with encapsulated braid structure ensures excellent torque control and kink resistance during percutaneous coronary interventions. The 0.071‑inch inner lumen supports efficient contrast injection and smooth device passage. A vest‑tech nylon jacket and radiopaque marker band provide clear hub-to-tip visibility under fluoroscopy for precise placement.
Technical Specification:
| Specification | Details |
|---|---|
| Outer diameter | 6 Fr (~2 mm) |
| Inner diameter (ID) | 0.071 in |
| Length | 100 cm |
| Curve type | Judkins Right JR 5.0 |
| Shaft construction | Full‑Wall with encapsulated braid |
| Radiopacity | Vest‑tech nylon jacket + marker band |
Product Also Knows As:
Medtronic Launcher JR5.0 6Fr guiding catheter, Launcher LA6JR50 right coronary catheter, 6 Fr JR 5.0 Launcher catheter, 100 cm Judkins Right guiding catheter, Coronary guide catheter JR5.0 6Fr
