Medtronic Laucher Guiding catheter 6 Fr – 100 cm Judkins left JL 6.0 LA6JL60
The Medtronic Launcher Guiding Catheter is a sterile, single-use coronary guide catheter. It supports the delivery of guidewires, balloons, and stents to the left coronary artery during PCI procedures. The catheter delivers balanced flexibility, strong backup support, and high radiopacity.

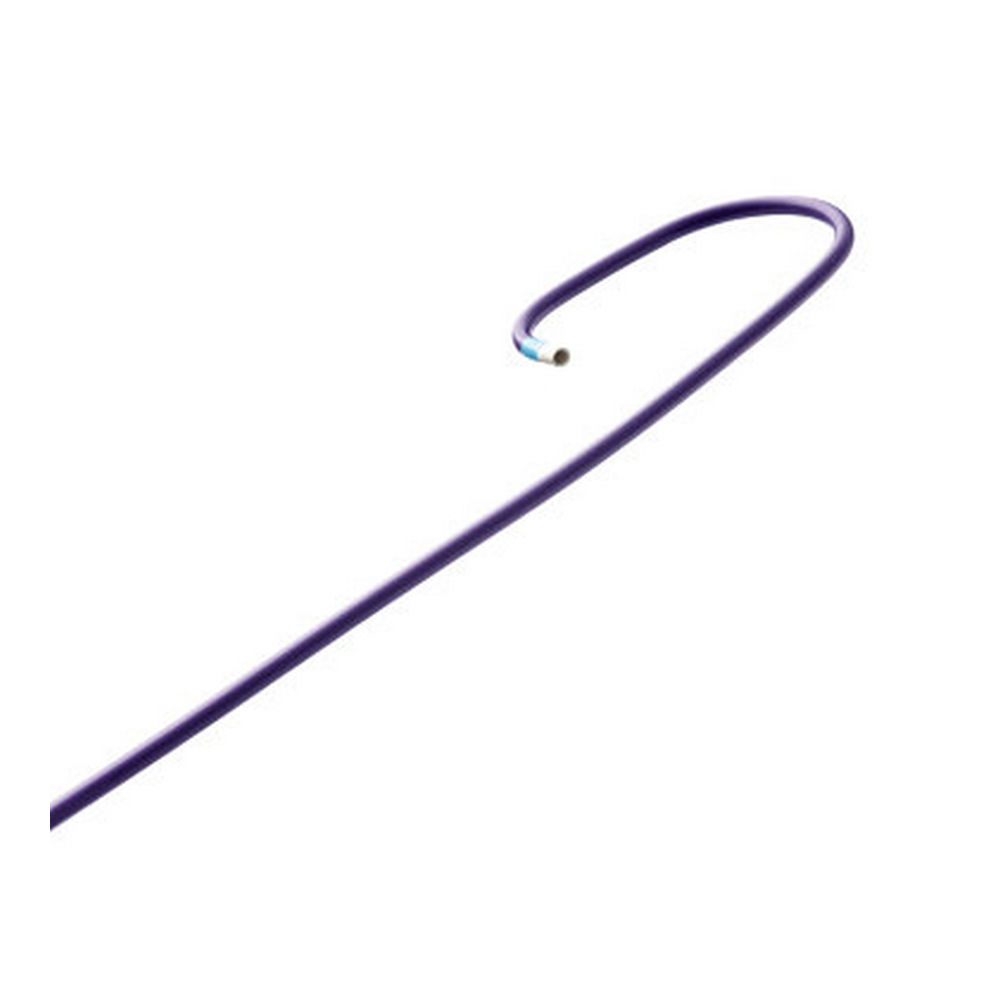

Featuring a JL 6.0 secondary curve, this catheter offers enhanced engagement and reliable backup for complex left coronary anatomies. Its Full-Wall technology with encapsulated flat-wire braid ensures precise torque control, bend resistance, and consistent shaft retention. The 0.071‑inch inner lumen supports high-volume contrast injection and seamless device delivery. A vest‑tech nylon jacket plus radiopaque marker band enhance visibility and accurate tip orientation under fluoroscopy.
Technical Specification:
| Specification | Details |
|---|---|
| Outer diameter | 6 Fr (~2 mm) |
| Inner diameter (ID) | 0.071 in |
| Length | 100 cm |
| Curve type | Judkins Left JL 6.0 |
| Shaft construction | Full-Wall with encapsulated flat-wire braid |
| Radiopacity | Vest-tech nylon jacket + radiopaque marker |
Product Also Knows As:
Medtronic Launcher JL6.0 6Fr guiding catheter, Launcher LA6JL60 coronary guide catheter, 6 Fr JL 6.0 Launcher catheter, 100 cm Judkins Left JL6 guide catheter, Coronary guide catheter JL6.0 6Fr
