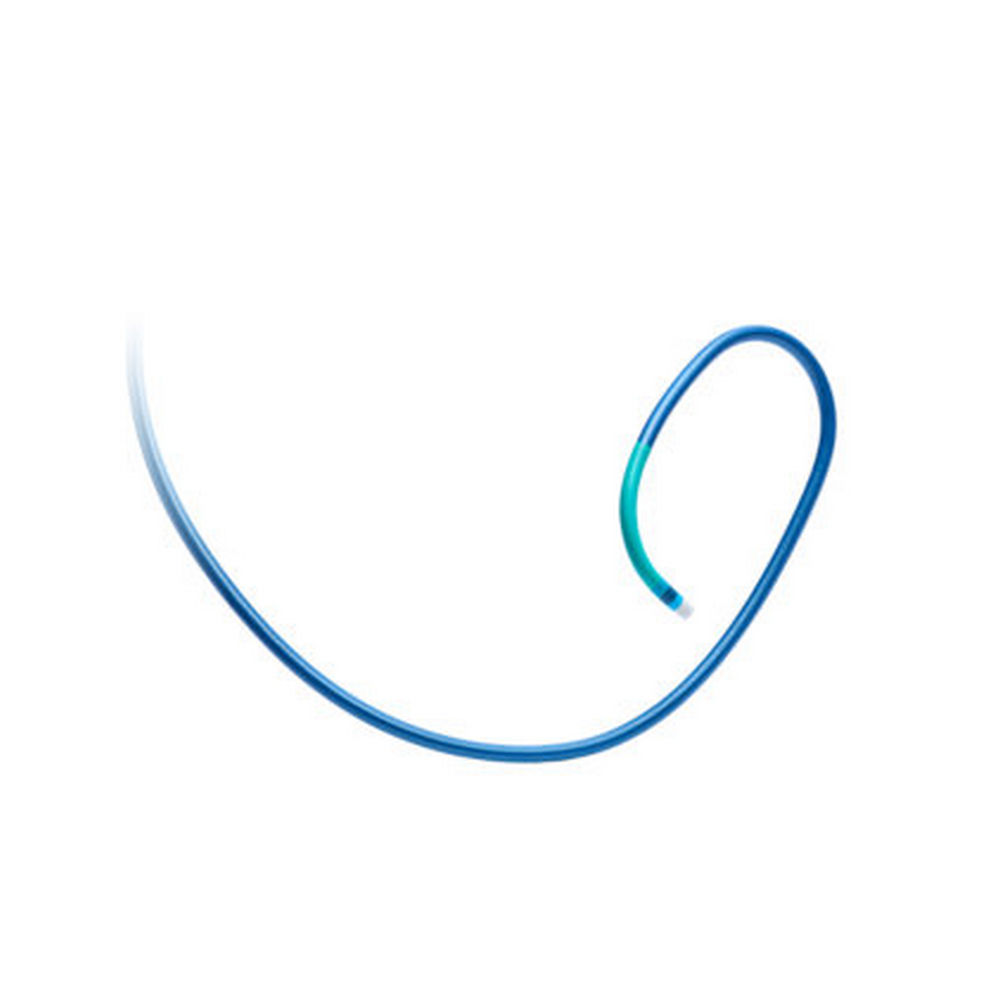

Medtronic Laucher Guiding catheter 6 Fr – 100 cm Judkins left JL 4.5 LA6JL45
The Medtronic Launcher Guiding Catheter is a sterile, single-use catheter used in coronary procedures. It facilitates the introduction of interventional tools such as guidewires, balloons, and stents into the left coronary artery. Designed for optimal flexibility, support, and radiopacity for consistent performance.
This JL 4.5 variant offers a supportive secondary curve that improves engagement and backup support for the left coronary ostium. Its Full-Wall shaft with encapsulated flat-wire braid ensures excellent torque control, kink resistance, and reliable shape retention during interventions. The 6 Fr size with a 0.071‑inch lumen enables effective contrast injection and smooth device delivery. A vest‑tech nylon jacket and radiopaque marker band enhance tip visibility under fluoroscopy, allowing precise placement.
Technical Specification:
| Specification | Details |
|---|---|
| Outer diameter | 6 Fr (≈2 mm) |
| Inner diameter (ID) | 0.071 in |
| Length | 100 cm |
| Curve type | Judkins Left JL 4.5 |
| Shaft construction | Full-Wall with encapsulated braid |
| Radiopacity | Vest-tech nylon jacket + marker band |
(Specifications based on Medtronic data for 6 Fr Launcher catheters.)
Product Also Knows As:
Medtronic Launcher JL4.5 6Fr guiding catheter, Launcher LA6JL45 coronary guide catheter, 6 Fr JL 4.5 Launcher catheter, 100 cm Judkins Left JL4.5 guide catheter, Coronary guide catheter JL4.5 6Fr
