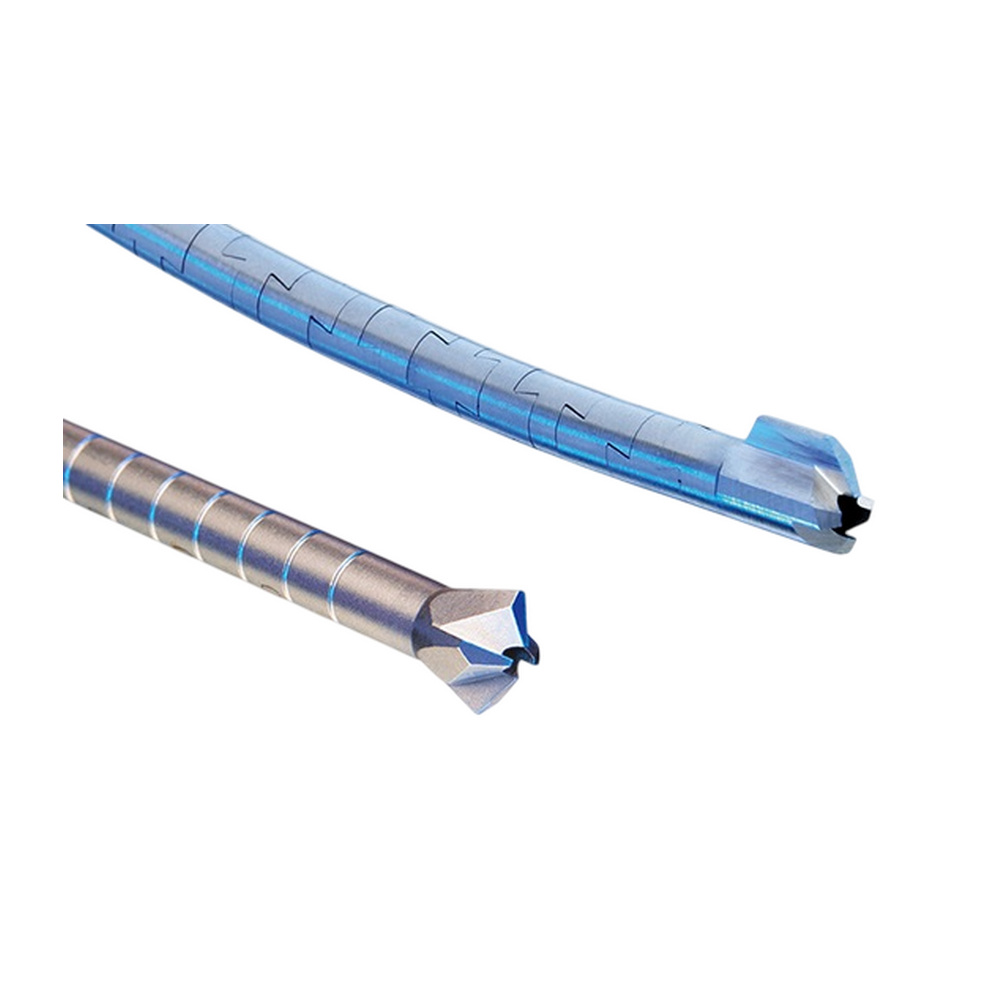

Conmed Sentinel Drill Bits 10mm dia. S8510
The Sentinel Drill Bit 10 mm (CAT # S8510) is a sterile, single-use cannulated orthopedic drill bit designed for creating a 10.0 mm diameter bone tunnel in ligament reconstruction procedures. It features a 229.0 mm working length for femoral or tibial use. The design incorporates safety and precision for minimally invasive anatomic tunnel preparation.
The Sentinel Drill Bit 10 mm (S8510) is part of the advanced Sentinel line engineered for anatomical ligament repair (such as ACL/PCL reconstruction). Its mono-fluted cutting edge and cannulated structure allow for guided drilling over a 2.4 mm guide pin, while a 270° smooth surface protects the medial femoral condyle during medial-portal techniques. With a working length of 229 mm and precise diameter of 10.0 mm, this instrument supports controlled tunnel creation and efficient operative workflow. Packaged sterile for single use, it ensures optimum cutting performance and reduced risk of cross-contamination.
Technical Specification
| Specification | Details |
|---|---|
| Catalog Number | S8510 |
| Diameter | 10.0 mm |
| Length | 229.0 mm |
| Design | Mono-fluted cutting edge, cannulated for use over guide pin |
| Surface Protection | 270° smooth shaft surface to protect the medial femoral condyle |
| Sterility/Use | Sterile, single-use device |
Product Also Knows As:
Sentinel Drill Bit 10 mm, S8510 Drill Bit 10 mm, Sentinel 10.0 mm Cannulated Drill Bit, ConMed Sentinel S8510, Orthopedic Tunnel Drill Bit 10mm
