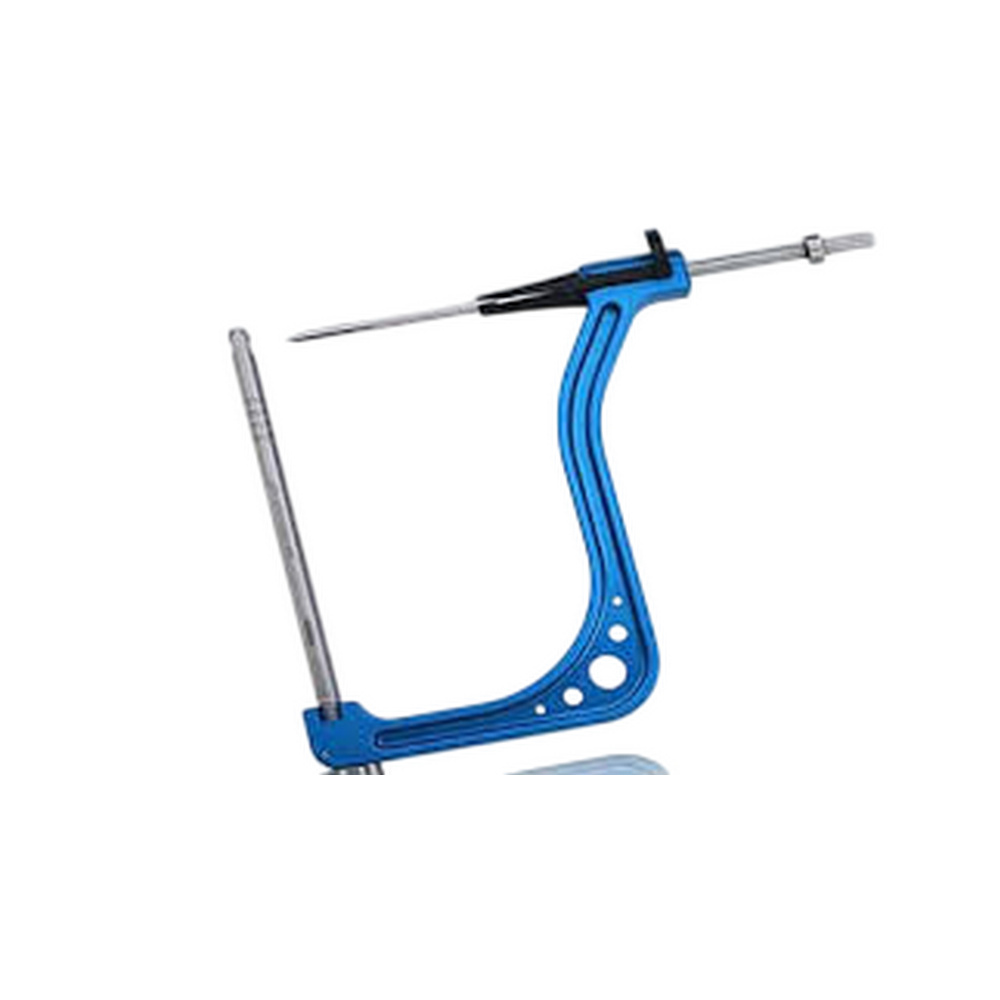

Conmed CrossPin U-Guide CPS-8902
The CrossPin U-Guide CPS-8902 is a specialized surgical guide used in ACL reconstruction with the Pinn-ACL CrossPin system. It helps position the transverse femoral tunnel and aligns instruments along the graft path. It is an essential component of the femoral fixation instrumentation kit.
This U-Guide is used to align the positioning rod and transverse cannula over the graft passing guide pin, aiding proper orientation of the transverse tunnel in the lateral femoral cortex. When fully assembled and inserted, the device facilitates measurement of the cortical length and guides drilling of the transverse tunnel with precision. It helps maintain spatial orientation and prevents misalignment between graft and fixation implant. Its integration in the Pinn-ACL workflow ensures reproducible femoral fixation placement.
Technical Specification
| Specification | Value / Description |
|---|---|
| Catalog / Part Number | CPS-8902 |
| Type | CrossPin U-Guide for Pinn-ACL system |
| Function / Role | Guides positioning rod, alignment, and transverse tunnel drilling |
| Compatibility | Works with 8 mm or 9 mm positioning rods, crosspin drill bit, graft harness and cannula |
| Reference System |
Product Also Known As
Pinn-ACL CrossPin U-Guide, ConMed U-Guide CPS-8902, CrossPin Alignment Guide CPS-8902, Femoral U-Guide for CrossPin, ACL CrossPin U-Guide
