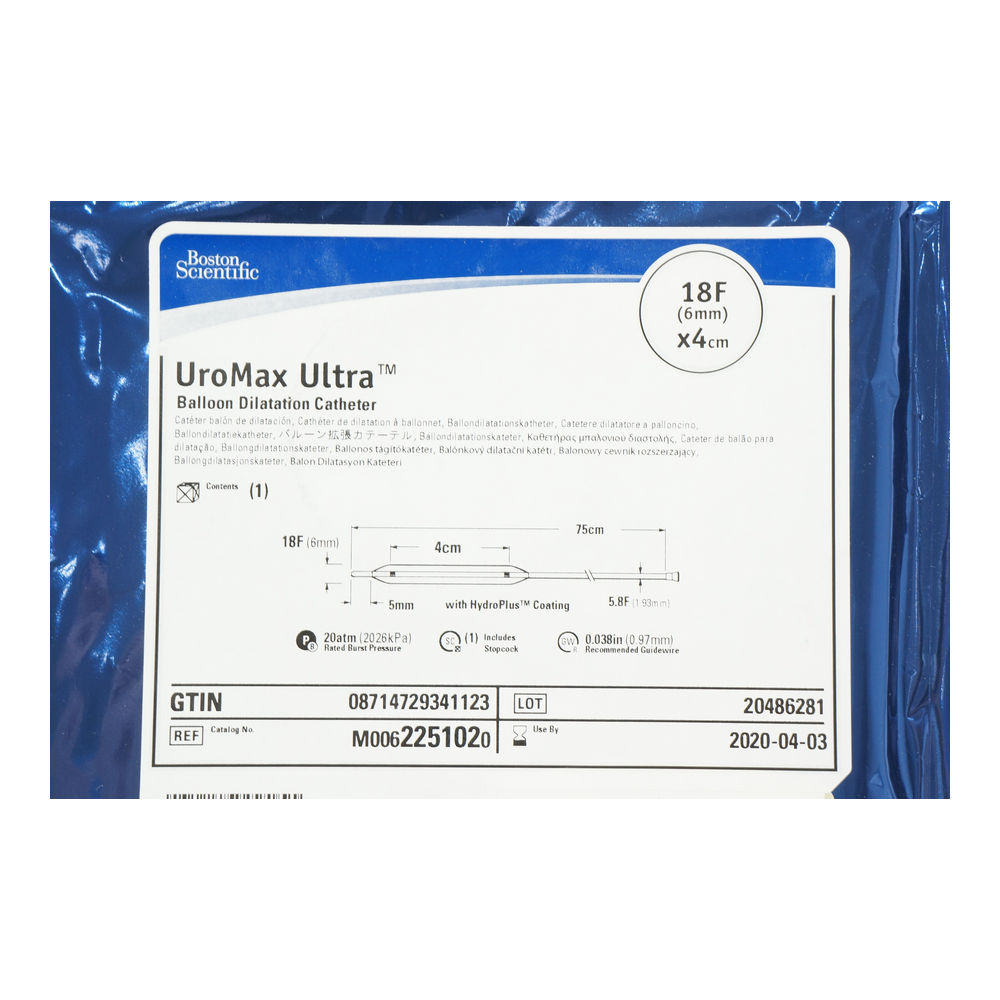

Boston Scientific UroMax Ultra High Pressure Balloon Catheter M0062251020
The UroMax Ultra™ balloon catheter is a sterile, single-use high-pressure dilator with an 18 Fr (~6 mm) non‑compliant balloon that is 4 cm long and mounted on a 5.8 Fr (~1.9 mm) shaft with 75 cm usable length. It’s HydroPlus™ coated and features quadra‑fold technology for a compact profile during insertion and withdrawal. Designed to relieve tight ureteral strictures with controlled dilation up to 20 atm.
This non‑compliant balloon maintains its diameter under high inflation pressures, focusing force on the stricture while sparing adjacent tissue . The HydroPlus™ coating and quadra‑fold design facilitate smooth navigation through tortuous anatomy with minimal friction. A kink‑resistant shaft, tapered tip, and radiopaque markers enhance accurate placement under fluoroscopy. Two‑lumen hubs support simultaneous contrast injection and inflation control.
Technical Specification
| Specification | Details |
|---|---|
| Balloon Diameter (inflated) | 18 Fr (~6 mm) |
| Balloon Length | 4 cm |
| Shaft Size & Length | 5.8 Fr (~1.9 mm); usable length 75 cm |
| Maximum Inflation Pressure | Up to 20 atm |
| Coating | HydroPlus™ |
| Design Features | Non‑compliant, quadra‑fold, kink‑resistant shaft, tapered tip, radiopaque markers, dual‑lumen hubs |
Product Also Knows As
UroMax Ultra 18F × 4 cm balloon catheter, M0062251020 ureteral high-pressure dilator, HydroPlus UroMax 18F balloon, quadra‑fold UroMax Ultra dilator
