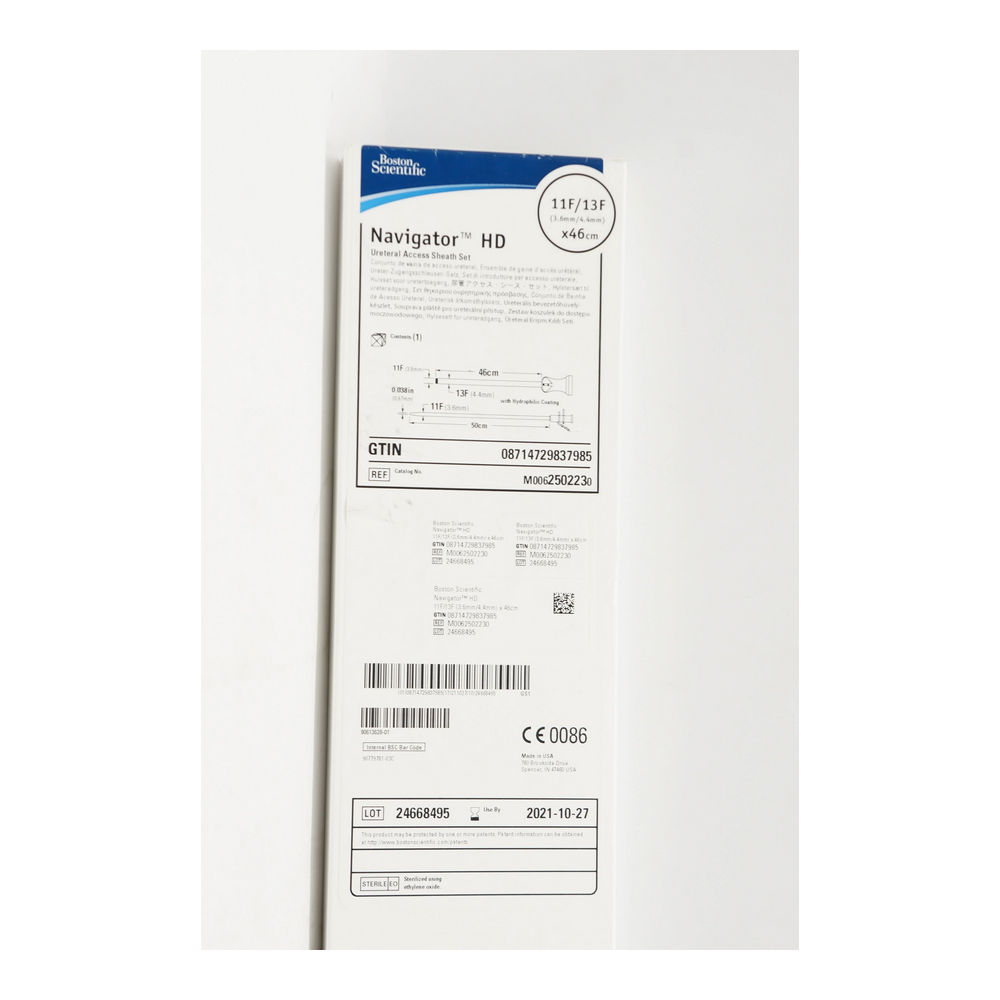

Boston Scientific Navigator HD Ureteral Access Sheath M0062502230
The Navigator HD Ureteral Access Sheath is a sterile, single-use sheath and dilator set featuring an 11 Fr inner diameter and a 13 Fr outer diameter, with a 46 cm working length. It has a kink-resistant stainless-steel coil sheath and a dual-durometer dilator, both hydrophilic-coated for smooth ureteral passage. Designed to support repeated ureteroscope exchanges and maintain a working channel during ureteroscopy.
This advanced sheath integrates a reinforced stainless-steel coil to preserve lumen integrity in tortuous ureters, reducing buckling and instrument trauma. The hydrophilic coating on both sheath and dilator ensures smoother insertion and improved durability, ideal for bilateral or prolonged procedures. The dual-durometer dilator design combines a stiffer core for pushability with a softer tapered tip to minimize mucosal injury. A single-latch hub and radiopaque marker band allow precise, one-handed placement under fluoroscopy.
Technical Specification
| Specification | Details |
|---|---|
| Inner / Outer Diameter | 11 Fr (≈ 3.6 mm) / 13 Fr (≈ 4.4 mm) |
| Working Length | 46 cm |
| Sheath Reinforcement | Stainless-steel coil (kink-resistant) |
| Dilator Design | Dual-durometer; firm shaft, flexible tip |
| Hydrophilic Coating | On both sheath and dilator |
| Radiopaque Marker | Band near tip for fluoroscopic positioning |
| Hub Mechanism | One-handed single-latch hub |
| Latex-Free | Contains no detectable latex |
Product Also Knows As
Navigator HD 11/13 Fr × 46 cm sheath, Boston Scientific M0062502230 ureteral access sheath, kink-resistant HD ureteroscopy sheath, hydrophilic-coated ureteral sheath, stainless-steel coil access sheath
