Asahi RG3 Guide Wire Straight Tip 330cm AHW10S302S

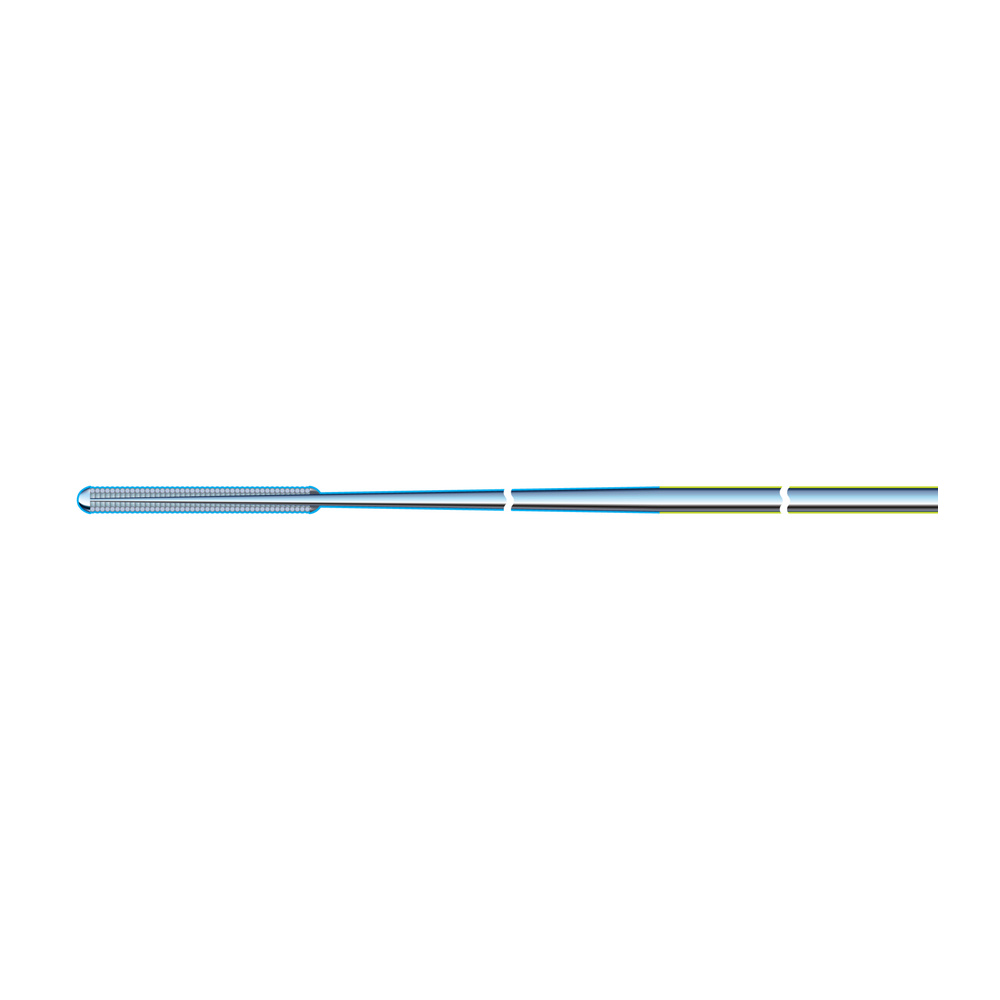

Asahi RG3 Guide Wire Straight Tip 330cm AHW10S302S is a specialized coronary guide wire designed for retrograde percutaneous coronary intervention procedures. It has a flexible 0.26 mm shaft and a straight tip for controlled navigation through coronary vessels. Its 330 cm length supports guide wire externalization during complex coronary interventions.

BUY NOW

SKU AHW10S302S Category

The ASAHI RG3 is designed to support device delivery and guide wire externalization in retrograde PCI procedures. Its flexible shaft helps reduce vessel interaction while allowing controlled advancement through challenging coronary anatomy. A 170 cm hydrophilic coating provides smooth tracking inside the catheter during the procedure. The guide wire combines a 3 gf tip load, 8 cm coil length, and 3 cm radiopaque segment for controlled handling and fluoroscopic visibility.

Technical Specification

Specification Details
Product Name ASAHI RG3
Catalog Number AHW10S302S
Tip Shape Straight
Usable Length 330 cm
Outer Diameter 0.26 mm (0.010 inch)
Coating Hydrophilic

Product Also Known As

Asahi RG3 Guide Wire, ASAHI RG3 Coronary Guide Wire, RG3 330cm Guide Wire, AHW10S302S Guide Wire, Asahi RG3 Straight Tip Guide Wire, ASAHI Retrograde Guide Wire
