Asahi Astato 30 0.018 Inch Guide Wire Straight Tip 180cm PAGH18M071

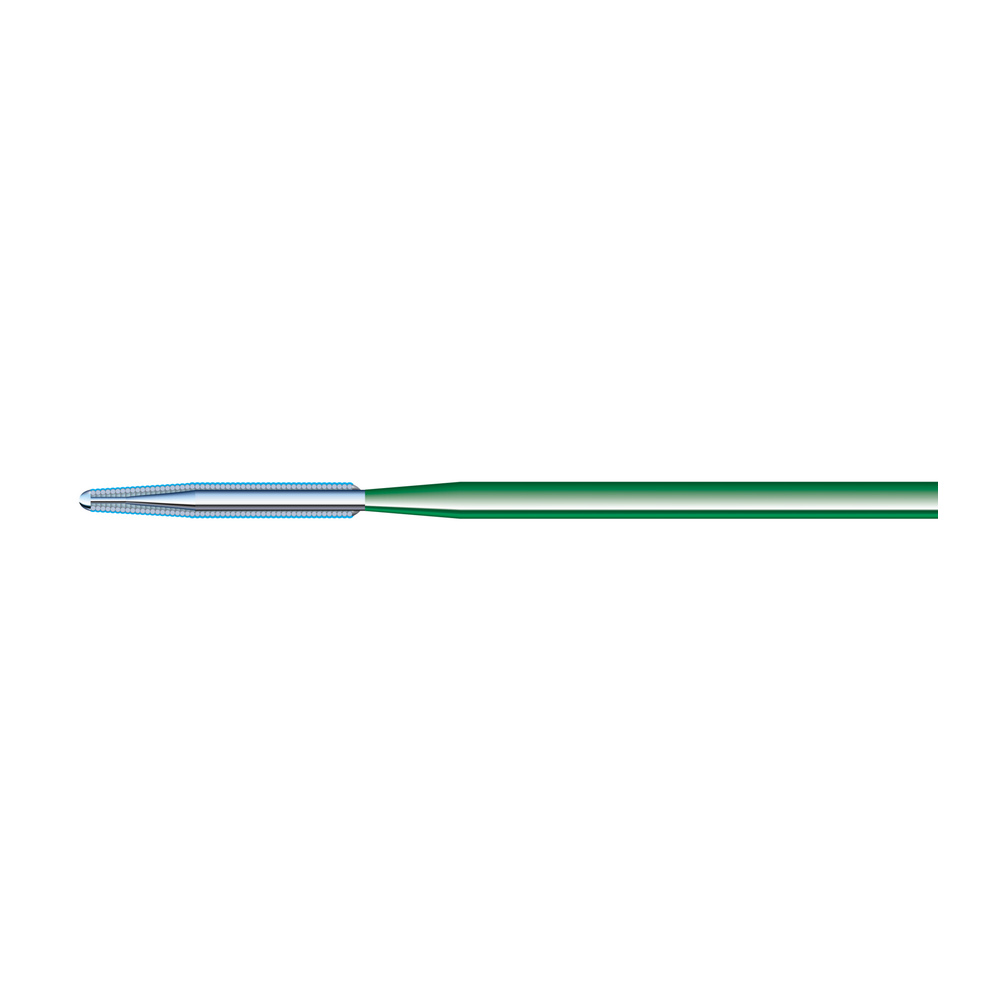

Asahi Astato 30 0.018 Inch Guide Wire Straight Tip 180cm PAGH18M071 is a peripheral guide wire designed for navigating challenging vascular lesions. It features a straight tapered tip with a 30 gf tip load to provide strong penetration during lesion crossing. The 180 cm guide wire has a 0.018-inch diameter and hydrophilic coating with an uncoated ball tip.

BUY NOW

SKU PAGH18M071 Category

The Astato 30 is designed to support the placement and exchange of diagnostic and therapeutic devices during peripheral vascular procedures. Its tapered tip is intended to provide high penetration performance when crossing difficult lesions. The hydrophilic coating helps improve lubricity during advancement, while the uncoated ball tip supports controlled interaction with the lesion. The 15 cm radiopaque segment provides fluoroscopic visibility, while the 15 cm coil and coating lengths contribute to distal guide wire performance.

Technical Specification

Specification Details
Product Name Astato 30
Catalog Number PAGH18M071
Tip Shape Straight
Usable Length 180 cm
Outer Diameter 0.33/0.45 mm (0.013/0.018″)
Tip Load 30 gf
Coating Hydrophilic with Uncoated Ball Tip

Product Also Known As

Asahi Astato 30 Guide Wire, Astato 30 0.018 Inch Guide Wire, Astato 30 180cm Guide Wire, PAGH18M071 Guide Wire, Asahi Peripheral Guide Wire, Astato 30 Straight Tip Guide Wire
