ARROW CVC SET DOUBLE-LUMEN CV-12702

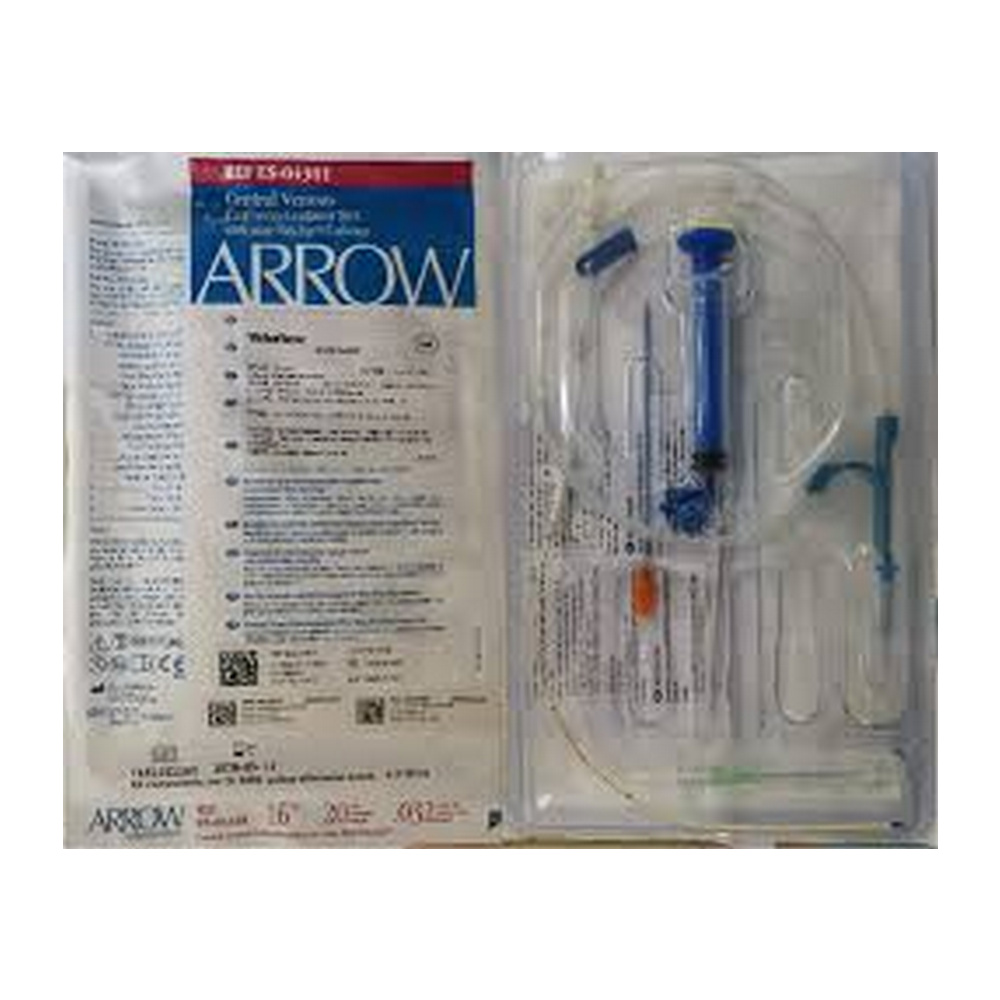

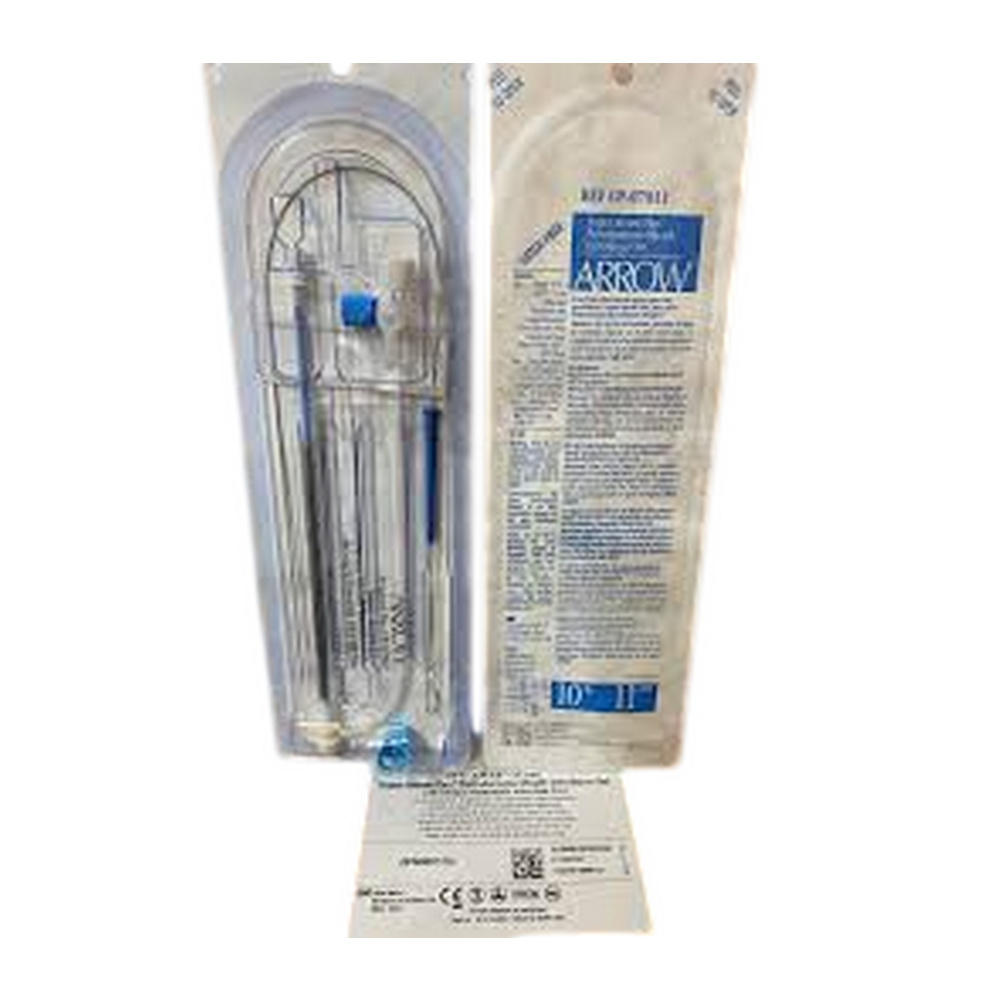

The Arrow CVC Set CV-12702 is a double-lumen central venous catheterisation kit designed for central venous access. It includes a 7 Fr (2.5 mm) two-lumen polyurethane catheter and all accessories needed for Seldinger technique insertion. The kit is sterile and CE-marked for safety in critical care settings.
This double-lumen CVC set from Arrow offers two separate channels within a single catheter, enabling simultaneous infusions, blood sampling, or pressure monitoring. The catheter’s 7 Fr size balances flow capacity with patient comfort, making it suitable for both ICU and perioperative use. The included spring-wire guide and dilator help facilitate smooth insertion with minimal vessel trauma. The SecondSite adjustable hub and catheter clamp provide secure fixation and reduce the risk of accidental displacement.
Technical Specification
| Specification | Detail |
|---|---|
| Catheter Size | 7 Fr (2.5 mm outer diameter) × 16 cm |
| Spring-Wire Guide | .025″ (0.64 mm) × 45 cm, J-tip and straight ends, with Arrow Advancer |
| Introducer Needle | 18 Ga × 2.5″ (6.35 cm) radiopaque, RW |
| Tissue Dilator | 8.5 Fr (2.8 mm) × 10.2 cm |
| Syringe | 5 mL Luer-slip for guide-wire introduction |
| Material & Safety | Polyurethane catheter, not made with natural rubber latex |
Product Also Knows As:
Arrow CVC CV12702, Arrow 2-Lumen Central Venous Catheter Set, Arrow Double Lumen CVC 7 Fr, Arrow CV-12702 Kit, Arrow 7 Fr Two-Lumen CVC
